Working pressure

ΔP = 0 – 100 kPa rel.
ΔP = 0 až – 80 kPa rel.

Volume flow

Q = 40 – 20 000 m3/hour

Engine power

P1 = 0,75 – 560 kW

Connection dimensions

DN = 80 – 500

Main advantages The customer solution tailored to the required technology and the customer’s wishes in combination with all the advantages of common units ensures satisfaction on both sides and trouble-free operation of the equipment.

  • Low operating costs
  • Easy operation
  • Minimum built-up area
  • Low noise
  • Long life
  • Extra fast warranty and post-warranty service

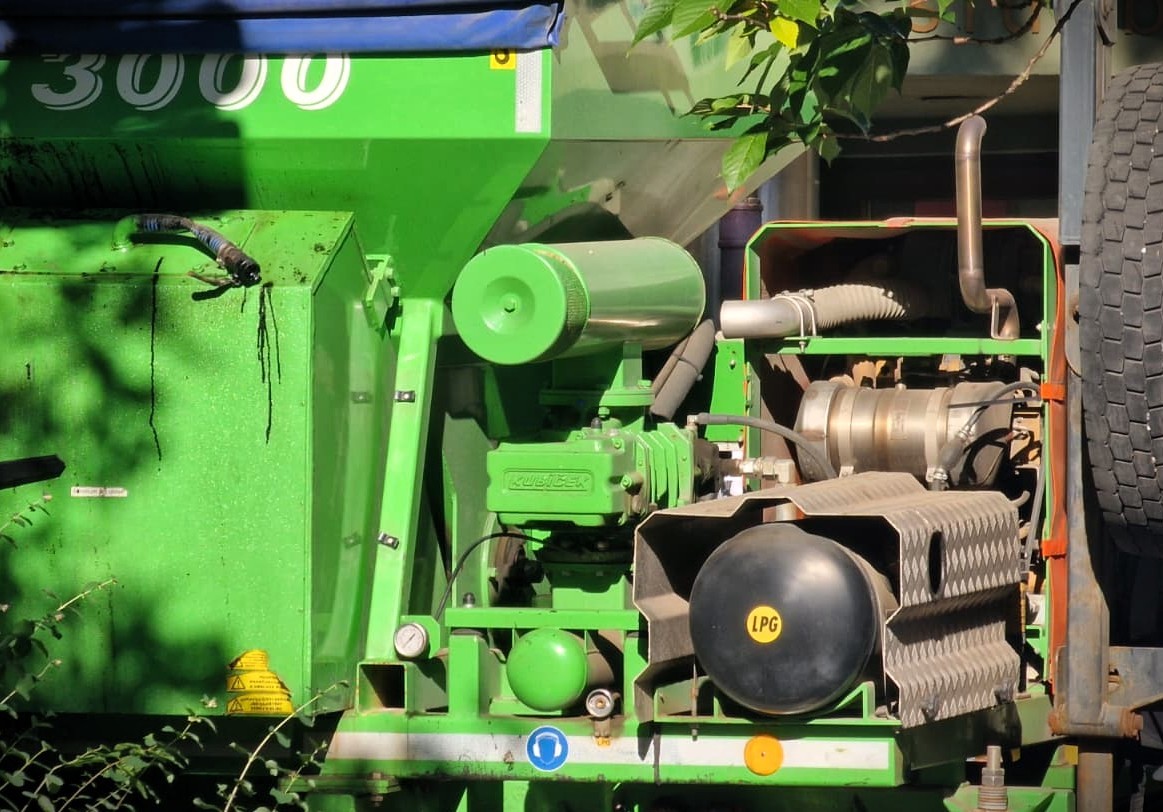

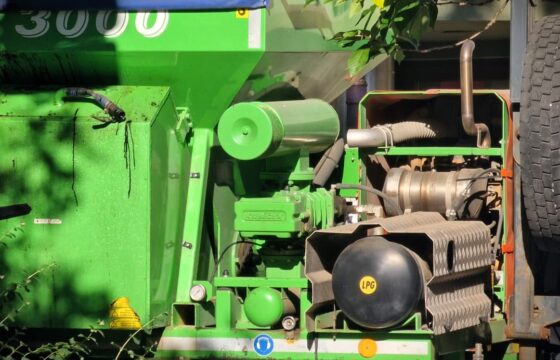

Mobile applications | Kubíček VHS

The most common use

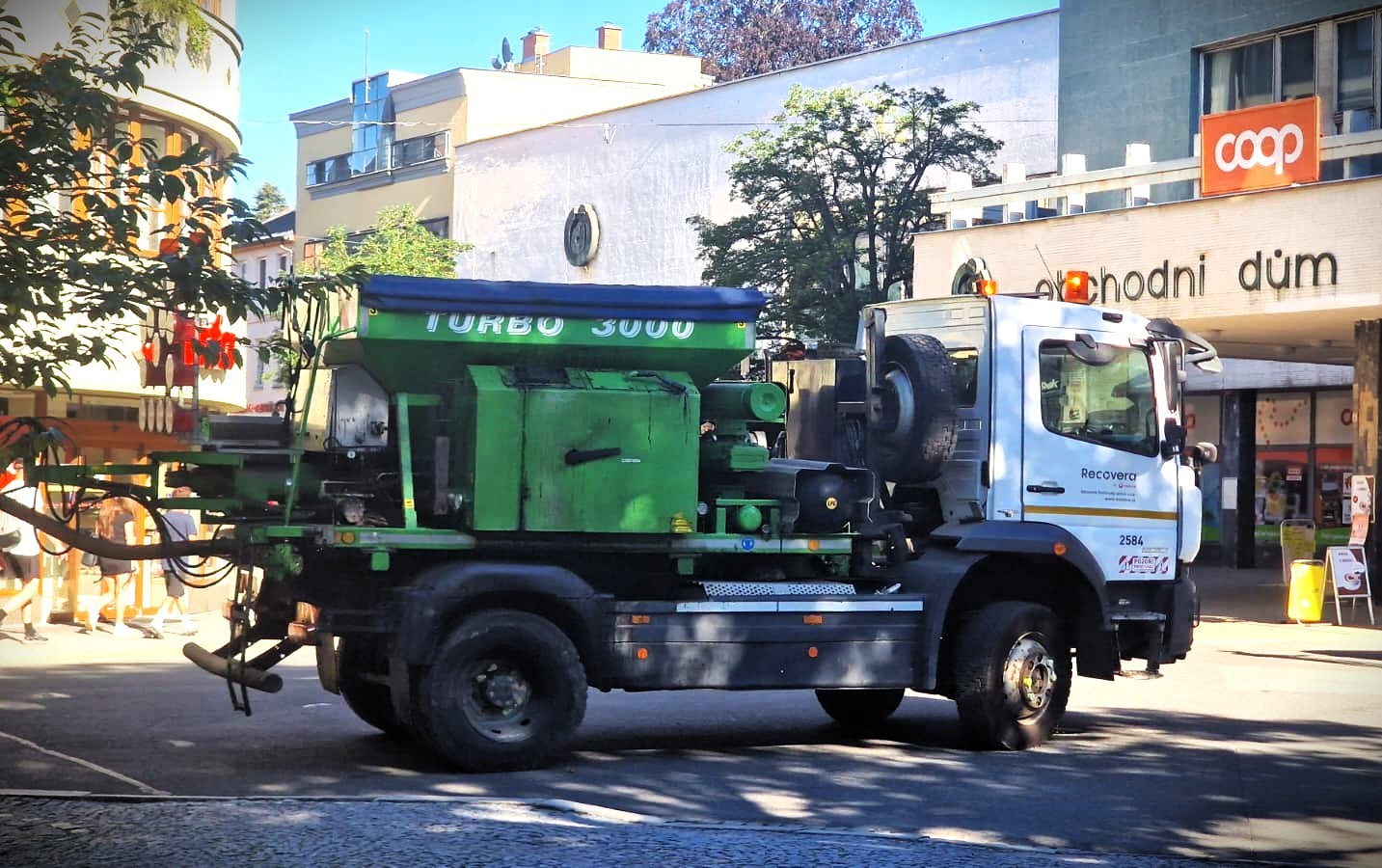

  • Road repairing and cleaning vehicles
  • Pneumatic transport of bulk materials
  • Transport and compression of gases (also ATEX)
  • Suction dredgers
  • Mobile gas stations

Scope of delivery

  • ROOTs blower
  • Support frame of the unit
  • Flexible mounting / silent blocks
  • Intake silencer with replaceable filter
  • Combined absorption / chamber discharge silencer
  • Safety or combined proportional valve
  • Check valve
  • Flexible discharge connection
  • Driven by electric motor / hydraulic motor / diesel generator
  • Belt drive / clutch / cardan shaft
  • Starting oil filling
  • Anchor material

Optional equipment

  • Acoustic cover for indoor (К) or outdoor (Е) environment, including suction manometer (with filter clogging indication) and discharge manometer
  • all units can be equipped with sensors according to the customer’s wishes (temperature, pressure, speed sensor, etc.)
  • Heat exchanger / intercooler

Frequently asked questions

Is it possible to prepare the unit according to the customer's specification?

When designing units for mobile use, we always work closely with the client's design team.
